seqtrie is a collection of radix tree algorithms for
finding similar strings, with a focus on biological sequence data. Here,
“similar” usually means close under Hamming distance, Levenshtein
distance, or semi-global alignment.
A radix tree, also called a compressed trie, is an efficient data structure for searching large sets of sequences. It stores shared prefixes once, so a search can skip whole branches instead of checking every sequence one by one.
For bounded-distance searches, this can be sub-linear in the number of stored sequences because the tree can prune whole branches.
One common job is a similarity join: find every pair of sequences within a fixed distance. The example below has 133,033 TCR beta CDR3 DNA sequences (Nolan et al. 2020).
data(covid_cdr3)
results <- dist_search(covid_cdr3, max_distance = 3,
nthreads = 8, tree_class = "StarTree")Trie-based algorithms are a good fit for this kind of search. The
tree structure lets seqtrie rule out large groups of
targets without checking every sequence against every other
sequence.
seqtrie has three tree classes.
radix_tree()): the classic
radix tree and the most general-purpose class. It supports insertion,
deletion, prefix lookup, Hamming search, Levenshtein search, custom
costs, single-gap search, and anchored search.radix_forest()): many
radix trees, split by sequence length. This can be faster for Hamming
and Levenshtein searches, especially when length is informative.star_tree()): a specialized
DNA similarity join class. It is a modified version of the Starcode
all-pairs search algorithm from Zorita, Cuscó, and Filion (2015),
adapted to operate over a radix trie rather than being a direct
reimplementation. It supports fixed global/Levenshtein joins, fixed
anchored joins (mode = "anchored"), and fixed Hamming joins
(mode = "hamming"). For small edit-distance DNA self-joins
it typically outperforms the other two classes (see the benchmark
below).dist_search() is a convenience wrapper around these
classes. It can search for similarity between query and
target, or within query when
target is NULL.
Below is a benchmark applying dist_search to the
covid_cdr3 dataset.

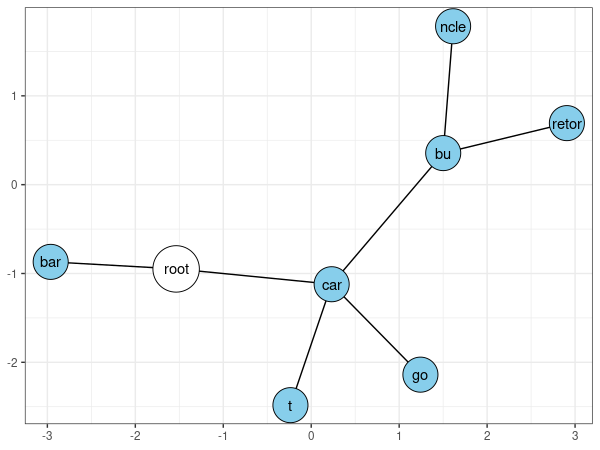

Here is a small radix tree. We insert a few strings, erase one, and plot the result.
The useful part is the shared prefix. cargo,
cart, carburetor, and carbuncle
all start with car, so the tree stores car
once. After that, it only stores the pieces where the strings split.
tree <- radix_tree()
insert(tree, c("cargo", "cart", "carburetor", "carbuncle", "bar", "zebra"))
erase(tree, "zebra")
# plot_tree requires igraph and ggplot2
set.seed(1); plot_tree(tree)
Hamming distance is similar to Levenshtein distance, but it does not allow insertions or deletions. Sequences must be the same length. Because of this restriction, Hamming distance is generally a lot faster.
Use max_fraction to set the distance threshold relative
to query length. For example, max_fraction = 0.06 keeps
matches within roughly 6% Hamming distance.
results <- align_search(tree, covid_cdr3, max_fraction = 0.035,
mode = "hamming", nthreads = 2)
results <- align_search(tree, covid_cdr3, max_fraction = 0.06,
mode = "hamming", nthreads = 2)
results <- align_search(tree, covid_cdr3, max_fraction = 0.15,
mode = "hamming", nthreads = 2)An anchored alignment is a form of semi-global alignment. The query is anchored to the beginning of both the query and target sequences, but the end of either sequence can be unaligned.
tree <- radix_tree()
insert(tree, "CARTON")
insert(tree, "CAR")
insert(tree, "CARBON")
align_search(tree, "CART", max_distance = 0, mode = "anchored")## query target distance query_size target_size
## 1 CART CAR 0 3 3
## 2 CART CARTON 0 4 4With max_distance = 0, the query "CART"
finds "CAR" and "CARTON" but not
"CARBON". Anchored search also returns where the alignment
ends in the query and target. This is useful when reads have variable
length but start from the same genomic position or primer site.
seqtrie supports custom substitution costs and affine
gap penalties.
tree <- radix_tree()
insert(tree, covid_cdr3)
# Define a custom substitution matrix. Use generate_cost_matrix for convenience.
cost_mat <- generate_cost_matrix("ACGT", match = 0, mismatch = 5)
print(cost_mat)## A C G T
## A 0 5 5 5
## C 5 0 5 5
## G 5 5 0 5
## T 5 5 5 0# Set gap penalties via parameters (not in the matrix):
# - Linear gaps: set gap_cost only
# - Affine gaps: set both gap_cost and gap_open_cost
# Linear example
results_linear <- align_search(tree, covid_cdr3, max_distance = 8,
mode = "global",
cost_matrix = cost_mat,
gap_cost = 2,
nthreads = 2)
# Affine example
results_affine <- align_search(tree, covid_cdr3, max_distance = 8,
mode = "global",
cost_matrix = cost_mat,
gap_cost = 2,
gap_open_cost = 5,
nthreads = 2)
results_linear[results_linear$query != results_linear$target, , drop = FALSE]## query
## 130 TGTGCCAGCAGTGGGGGGAACACTGAAGCTTTCTTT
## 159 TGTGCCAGCAGCTCTAGCGGGGTGAGCACAGATACGCAGTATTTT
## 165 TGTGCCAGCAGCTCTACAGGGGTGAGCACAGATACGCAGTATTTT
## 203 TGTGCCAGTAGTCTCGGACAGGGCCTCTCCTACGAGCAGTACTTC
## 204 TGTGCCAGTAGTCTCGGACAGGGCCTCTCCTACGAGCAGTACTTC
## 258 TGTGCCAGCAGTTATTCGAACACCGGGGAGCTGTTTTTT
## 286 TGTGCCAGTAGTGTCGGACAGGGCCTCTCCTACGAGCAGTACTTC
## 287 TGTGCCAGTAGTGTCGGACAGGGCCTCTCCTACGAGCAGTACTTC
## 292 TGTGCCAGCAGCTCGGGACTGTCCTACGAGCAGTACTTC
## 293 TGTGCCAGCAGCTCGGGACTGTCCTACGAGCAGTACTTC
## 313 TGTGCCAGTAGTATGGGACAGGGGCTATCCTACGAGCAGTACTTC
## 329 TGTGCCAGTAGTATTGGACAGGGGACATCCTACGAGCAGTACTTC
## 330 TGTGCCAGTAGTATTGGACAGGGGACATCCTACGAGCAGTACTTC
## 342 TGTGCCAGCAGCTTCGCTAGCAATGAGCAGTTCTTC
## 345 TGTGCCAGCAGCTACAGGGGCTCCTACGAGCAGTACTTC
## 428 TGTGCCAGCAGCCCTTCGGGAAATGAGCAGTTCTTC
## 542 TGTGCCAGCAGCTTCGGGTACAATGAGCAGTTCTTC
## 544 TGTGCCAGCAGCTTCGGGTACAATGAGCAGTTCTTC
## 560 TGTGCCAGCAGCCCTACGGGGGGTGAAGCTTTCTTT
## 567 TGTGCCAGCAGTTACCGGGGAAGCACTGAAGCTTTCTTT
## 615 TGTGCCAGCAGTTTATACGGAGAGACCCAGTACTTC
## 635 TGTGCCAGTCAGCTTATCAACACCGGGGAGCTGTTTTTT
## 659 TGTGCCAGCAGCTCCTTTACCTACGAGCAGTACTTC
## 667 TGTGCCAGTAGTATTGGACAGGGACTCTCCTACGAGCAGTACTTC
## 687 TGTGCCAGCAGTCCGGGGAACACTGAAGCTTTCTTT
## 688 TGTGCCAGCAGTCCGGGGAACACTGAAGCTTTCTTT
## 728 TGTGCCAGCGGGACTAGCGGGGGGGCCCTAGATACGCAGTATTTT
## 760 TGTGCCAGCAGTTTTAGGGGCTACGAGCAGTACTTC
## 782 TGTGCCAGCAGTCTTAGTGGAGAGACCCAGTACTTC
## 794 TGTGCCAGCAGTTTTGCGGGTTACGAGCAGTACTTC
## 818 TGTGCCAGCAGCTTATATACCTACGAGCAGTACTTC
## 919 TGTGCCAGCAGCTCGGATTCCTACGAGCAGTACTTC
## 929 TGTGCCAGCAGCTCGGGGACCTCCTACGAGCAGTACTTC
## 930 TGTGCCAGCAGCTCGGGGACCTCCTACGAGCAGTACTTC
## 971 TGTGCCAGTAGTCTCGGGACAGGGTTCTCCTACGAGCAGTACTTC
## 1019 TGTGCCAGTAGTAAGGGACAGGGCCTCTCCTACGAGCAGTACTTC
## 1031 TGTGCCAGCAGGGCTAGCGGGGGGGCTCCAGATACGCAGTATTTT
## 1035 TGTGCCAGCAGCCTCGGGGGTGAAGCTTTCTTT
## target distance
## 130 TGTGCCAGCAGTCCGGGGAACACTGAAGCTTTCTTT 8
## 159 TGTGCCAGCAGCTCTACAGGGGTGAGCACAGATACGCAGTATTTT 4
## 165 TGTGCCAGCAGCTCTAGCGGGGTGAGCACAGATACGCAGTATTTT 4
## 203 TGTGCCAGTAGTCTCGGGACAGGGTTCTCCTACGAGCAGTACTTC 8
## 204 TGTGCCAGTAGTGTCGGACAGGGCCTCTCCTACGAGCAGTACTTC 4
## 258 TGTGCCAGTCAGCTTATCAACACCGGGGAGCTGTTTTTT 8
## 286 TGTGCCAGTAGTAAGGGACAGGGCCTCTCCTACGAGCAGTACTTC 8
## 287 TGTGCCAGTAGTCTCGGACAGGGCCTCTCCTACGAGCAGTACTTC 4
## 292 TGTGCCAGCAGCTCGGGGACCTCCTACGAGCAGTACTTC 8
## 293 TGTGCCAGCAGCTCGGATTCCTACGAGCAGTACTTC 6
## 313 TGTGCCAGTAGTATTGGACAGGGGACATCCTACGAGCAGTACTTC 8
## 329 TGTGCCAGTAGTATTGGACAGGGACTCTCCTACGAGCAGTACTTC 8
## 330 TGTGCCAGTAGTATGGGACAGGGGCTATCCTACGAGCAGTACTTC 8
## 342 TGTGCCAGCAGCTTCGGGTACAATGAGCAGTTCTTC 8
## 345 TGTGCCAGCAGCTCGGGGACCTCCTACGAGCAGTACTTC 8
## 428 TGTGCCAGCAGCTTCGGGTACAATGAGCAGTTCTTC 8
## 542 TGTGCCAGCAGCCCTTCGGGAAATGAGCAGTTCTTC 8
## 544 TGTGCCAGCAGCTTCGCTAGCAATGAGCAGTTCTTC 8
## 560 TGTGCCAGCAGCCTCGGGGGTGAAGCTTTCTTT 6
## 567 TGTGCCAGCAGTCCGGGGAACACTGAAGCTTTCTTT 6
## 615 TGTGCCAGCAGTCTTAGTGGAGAGACCCAGTACTTC 8
## 635 TGTGCCAGCAGTTATTCGAACACCGGGGAGCTGTTTTTT 8
## 659 TGTGCCAGCAGCTTATATACCTACGAGCAGTACTTC 8
## 667 TGTGCCAGTAGTATTGGACAGGGGACATCCTACGAGCAGTACTTC 8
## 687 TGTGCCAGCAGTTACCGGGGAAGCACTGAAGCTTTCTTT 6
## 688 TGTGCCAGCAGTGGGGGGAACACTGAAGCTTTCTTT 8
## 728 TGTGCCAGCAGGGCTAGCGGGGGGGCTCCAGATACGCAGTATTTT 8
## 760 TGTGCCAGCAGTTTTGCGGGTTACGAGCAGTACTTC 8
## 782 TGTGCCAGCAGTTTATACGGAGAGACCCAGTACTTC 8
## 794 TGTGCCAGCAGTTTTAGGGGCTACGAGCAGTACTTC 8
## 818 TGTGCCAGCAGCTCCTTTACCTACGAGCAGTACTTC 8
## 919 TGTGCCAGCAGCTCGGGACTGTCCTACGAGCAGTACTTC 6
## 929 TGTGCCAGCAGCTACAGGGGCTCCTACGAGCAGTACTTC 8
## 930 TGTGCCAGCAGCTCGGGACTGTCCTACGAGCAGTACTTC 8
## 971 TGTGCCAGTAGTCTCGGACAGGGCCTCTCCTACGAGCAGTACTTC 8
## 1019 TGTGCCAGTAGTGTCGGACAGGGCCTCTCCTACGAGCAGTACTTC 8
## 1031 TGTGCCAGCGGGACTAGCGGGGGGGCCCTAGATACGCAGTATTTT 8
## 1035 TGTGCCAGCAGCCCTACGGGGGGTGAAGCTTTCTTT 6star_tree is a fixed DNA-only search structure based on
the Starcode all-pairs search strategy described by Zorita, Cuscó, and
Filion (2015). It is a modified version of that strategy, adapted to
operate over a radix trie rather than being a direct
reimplementation.
This class follows two Starcode ideas:
The Starcode algorithm remains one of the fastest methods for self-similarity joins at small edit distances on DNA.
Unlike the other two classes, the sequences and search parameters are supplied at construction time, the self-join runs immediately, and the object does not support later insertion or deletion.
st <- star_tree(c("ACGT", "ACGA", "AAAA", "AAAT"),
max_distance = 1,
mismatch_cost = 1,
gap_cost = 1,
nthreads = 2)
result(st)## query target distance
## 1 AAAT AAAA 1
## 2 ACGT ACGA 1# Search another query set using the same fixed costs and threshold.
align_search(st, c("ACGT", "AAAC"))## query target distance
## 1 AAAC AAAA 1
## 2 AAAC AAAT 1
## 3 ACGT ACGA 1
## 4 ACGT ACGT 0# The same path is available through dist_search().
dist_search(c("ACGT", "ACGA", "AAAA", "AAAT"),
max_distance = 1,
tree_class = "StarTree")## query target distance
## 1 AAAT AAAA 1
## 2 ACGT ACGA 1StarTree supports global/Levenshtein-style, anchored, and Hamming DNA
alignment with A, C, G,
T, and N. It does not support custom
substitution matrices, affine gaps, or per-query distance thresholds.
Alignment parameters are fixed when the tree is built;
align_search() only accepts query,
nthreads, and show_progress for
star_tree objects.
star_tree(..., mode = "anchored") is the fixed-tree
equivalent for anchored alignment. It is intended for DNA sets where
every sequence starts at the same biological position but may end at
different positions. The construction-time self-join returns each
unordered pair once, and additional query sets can be searched against
the same fixed targets.
ast <- star_tree(c("ACGT", "ACG", "AAAA", "AA"),
max_distance = 1,
mode = "anchored",
mismatch_cost = 1,
gap_cost = 1,
nthreads = 2)
result(ast)## query target distance query_size target_size
## 1 AAAA AA 0 2 2
## 2 ACG AA 1 1 2
## 3 ACGT AA 1 1 2
## 4 ACGT ACG 0 3 3align_search(ast, c("ACGT", "AA"))## query target distance query_size target_size
## 1 AA AA 0 2 2
## 2 AA AAAA 0 2 2
## 3 AA ACG 1 2 1
## 4 AA ACGT 1 2 1
## 5 ACGT AA 1 1 2
## 6 ACGT ACG 0 3 3
## 7 ACGT ACGT 0 4 4dist_search(c("ACGT", "ACG", "AAAA", "AA"),
max_distance = 1,
mode = "anchored",
tree_class = "StarTree")## query target distance query_size target_size
## 1 AAAA AA 0 2 2
## 2 ACG AA 1 1 2
## 3 ACGT AA 1 1 2
## 4 ACGT ACG 0 3 3Anchored StarTree mode supports scalar mismatch and linear gap costs
through mismatch_cost and gap_cost. It does
not support custom substitution matrices, affine gaps, or per-query
distance thresholds.
star_tree(..., mode = "hamming") is a substitution-only
fixed join: only sequences of the same length can match, and
max_distance is the maximum number of mismatched positions.
Because no insertions or deletions are considered,
mismatch_cost and gap_cost do not apply, and
it is typically much faster than global mode on the same data.
hst <- star_tree(c("ACGT", "ACGA", "TCGT", "ACG"),
max_distance = 1,
mode = "hamming",
nthreads = 2)
result(hst)## query target distance
## 1 ACGT ACGA 1
## 2 TCGT ACGT 1align_search(hst, c("ACGT", "TTGT"))## query target distance
## 1 ACGT ACGA 1
## 2 ACGT ACGT 0
## 3 ACGT TCGT 1
## 4 TTGT TCGT 1dist_search(c("ACGT", "ACGA", "TCGT", "ACG"),
max_distance = 1,
mode = "hamming",
tree_class = "StarTree")## query target distance
## 1 ACGT ACGA 1
## 2 TCGT ACGT 1N is treated as a regular base that mismatches every
base, including another N, so two aligned N
positions still count as a mismatch.
